Bag Filling And Sealing Machine

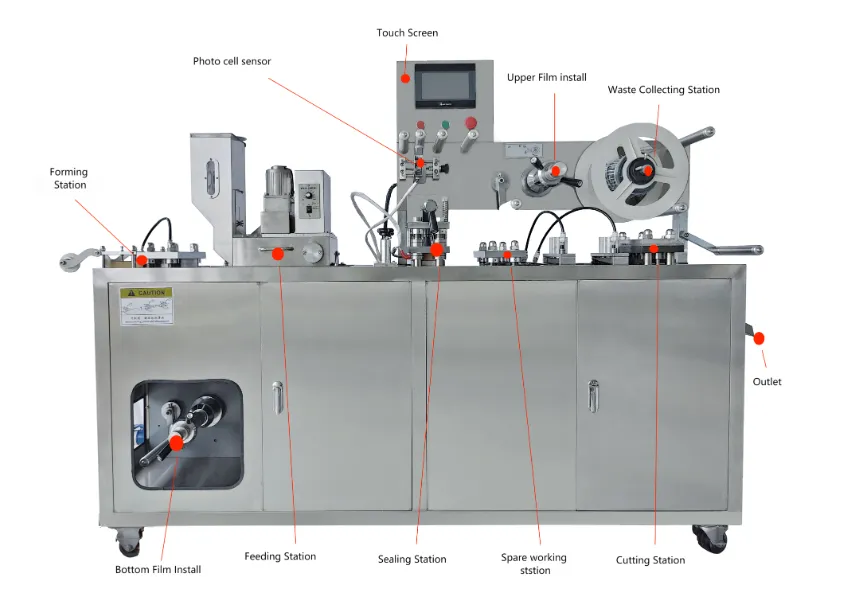

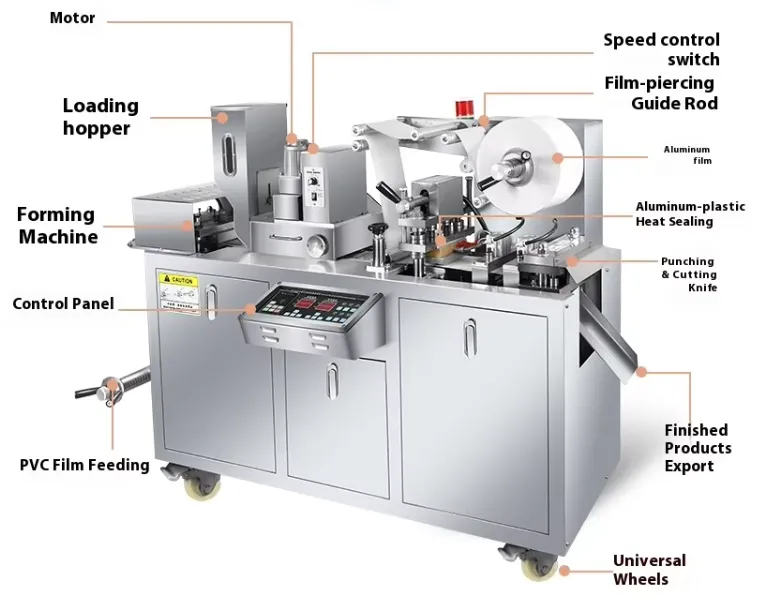

Aluminum-plastic Blister Packaging Machine
 |
 |
Technical Parameters
|
Production Capacity |
2400Plates/h |
|
Cutting Frequency |
10-40times/min |
|
Max.Froming Area and Depth |
80*115*14mm(Customized up to 30mm) |
|
Standard Plate |
80*57mm,can be customized |
|
Air Pressure |
0.6-0.8Mpa |
|
Mould Cooling |
Tap water or Recycling water |
|
Noise |
<75dBa |
|
PVC Rigid Sheet |
0.15-0.5*80mm |
|
PTP Aluminum Foil |
0.02-0.035*80mm |
|
Dialysis Paper |
50-100g*80mm |
|
Total Power |
380V/220V 50HZ 3.2KW |
|
Machine Weight |
450KG |
|
Machine Dimensions |
1800*650*1750mm |
|
Range of Standard Stroke |
20-120mm,can be customized |
|
Main Motor Power |
0.75Kw |
Video
|
|
Technical Parameters
|
Production Capacity |
2400Plates/h |
|
Cutting Frequency |
10-40times/min |
|
Max.Froming Area and Depth |
80*115*14mm(Customized up to 30mm) |
|
Standard Plate |
80*57mm,can be customized |
|
Air Pressure |
0.6-0.8Mpa |
|
Mould Cooling |
Tap water or Recycling water |
|
Noise |
<75dBa |
|
PVC Rigid Sheet |
0.15-0.5*80mm |
|
PTP Aluminum Foil |
0.02-0.035*80mm |
|
Dialysis Paper |
50-100g*80mm |
|
Total Power |
380V/220V 50HZ 3.2KW |
|
Machine Weight |
450KG |
|
Machine Dimensions |
1800*650*1750mm |
|
Range of Standard Stroke |
20-120mm,can be customized |
|
Main Motor Power |
0.75Kw |
Video
